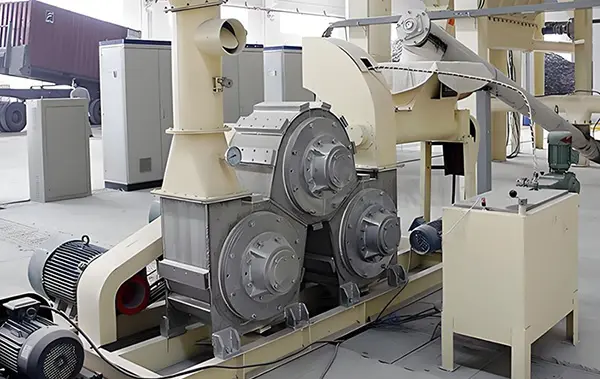

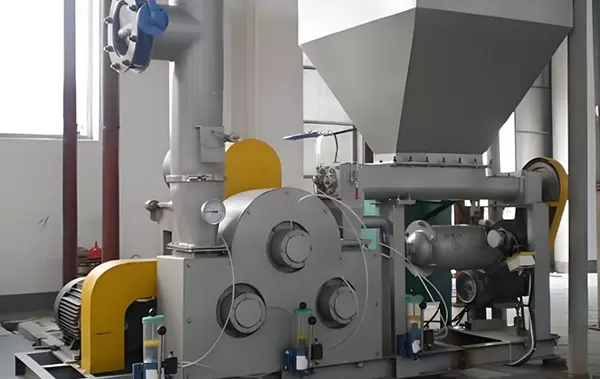

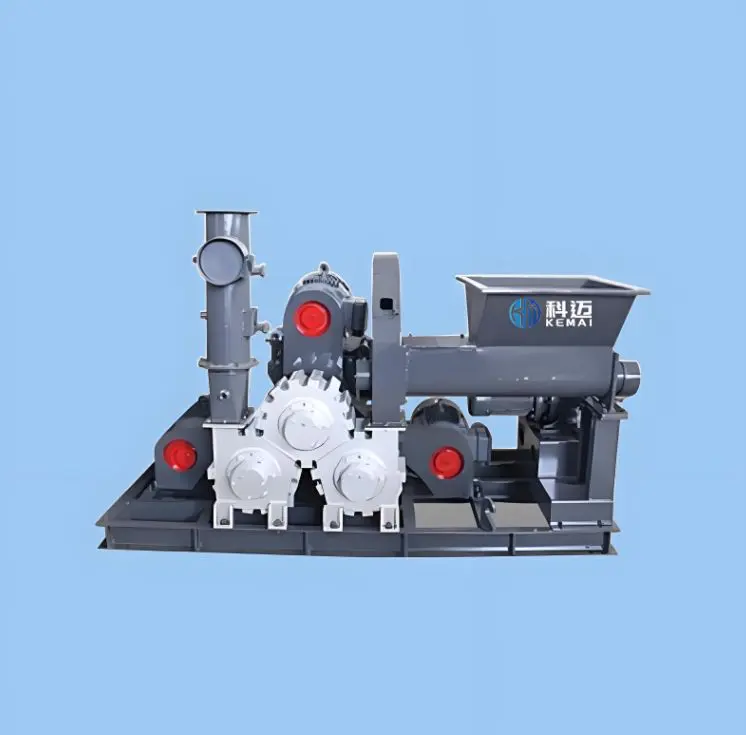

CM Series Powder Coating Machine - High-Quality Equipment
Working Principle
The powder raw material is sent to the atomization chamber above the main engine through the feed conveying system. During the conveying process, the powder is heated and dried by the special heating device of the feed conveyor. At the same time, the solid modifier is heated and melted to the liquid state in the special heating container and then sent to the atomization chamber through the conveying pipeline.
The atomizing room is provided with two groups of nozzles, one of which has four nozzles distributed in different positions on the wall of the atomizing room, and its role is to blow the powder material sent by the conveying system into a fog. At this time, the raw material and the modifier form a fog. Due to the effect of two groups of nozzles spraying air from different directions, it can be fully mixed, that is, into the main engine.
The main machine is composed of a high-speed rotating spindle, stirring rod, impact hammer, etc. The atomized material entering the main machine is subjected to impact, friction, shear and other effects under the high-speed stirring of the stirring rod, so that the powder particles and the modifier are fully contacted and mixed, and the powder material is fully coated and modified at this time.
The modified material is sent to the finished product collection bin by the screw conveyor. In the process of air transportation, the excessive heat in the material is absorbed by the conveying air. After the dust removal by the bag dust collector, the finished product can be reduced to the storage temperature after entering the collection bin.
Characteristic and feature of CM series powder coating machine:
(1）Continuous production, large capacity, can be used alone, but also with a variety of ultra-fine mill online operation.
(2）High coating rate, high activation index, less consumption of modified agents.
(3) The equipment has the function of dispersion, modified products without particle agglomeration phenomenon, no need to screen, can be directly packaged.
(4) Low production energy consumption: the lowest power consumption to 30 degrees/ton; Using the heat generated by the equipment itself when working, no additional auxiliary heating system is required to save costs.
(5) The modified temperature can be adjusted according to the characteristics of the material.
(6) System negative pressure production, no dust flying, excellent working environment.
Technical parameters of CM series powder coating machine
| Model | Main unit power (Kw) | Blower power(KW) | Capacity(kg/h) | Speed of main shaft(R/min) | Dimensions (L×W×H) (mm) |
| CM-200 | 11 | 2.2 | 400-1500 | 5700 | 3200×700×2200 |
| CM-300 | 18.5×3 | 5.5 | 500-1800 | 4500 | 5800×1800×6400 |
| CM-600 | 37×3 | 22 | 2000-4000 | 2700 | 11300×3300×6700 |
| CM-900 | 75×3 | 45 | 4000-7000 | 2000 | 21500×3900×7200 |
