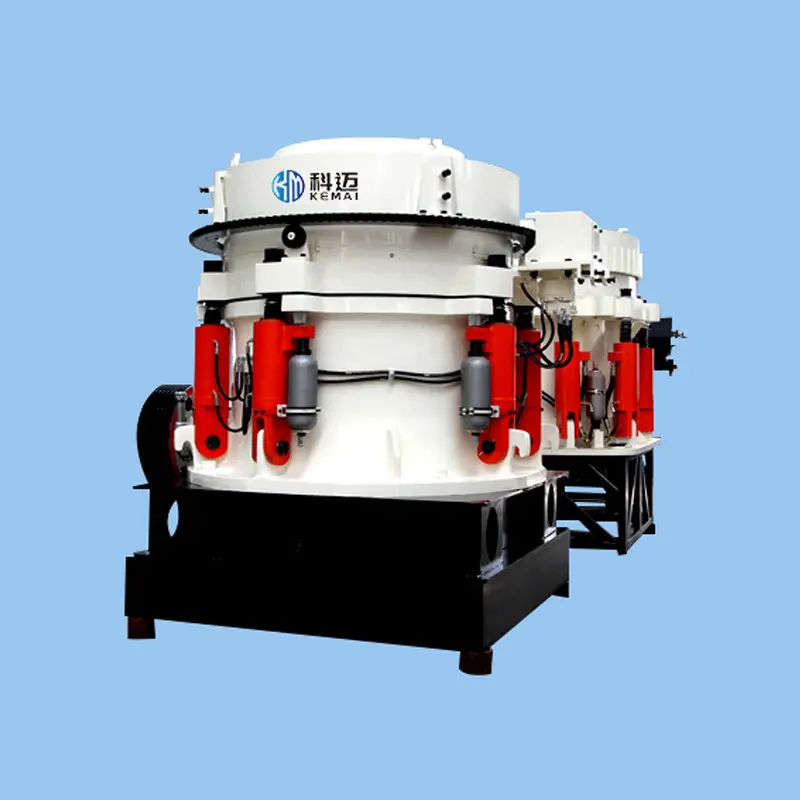

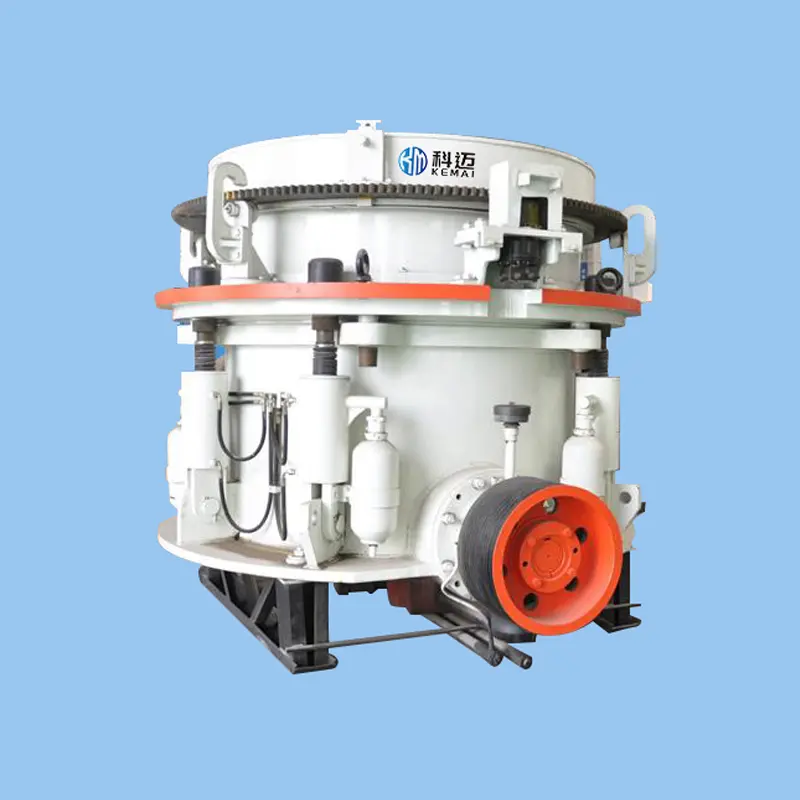

HPS Series Hydraulic Cone Crusher - High Performance Crushing

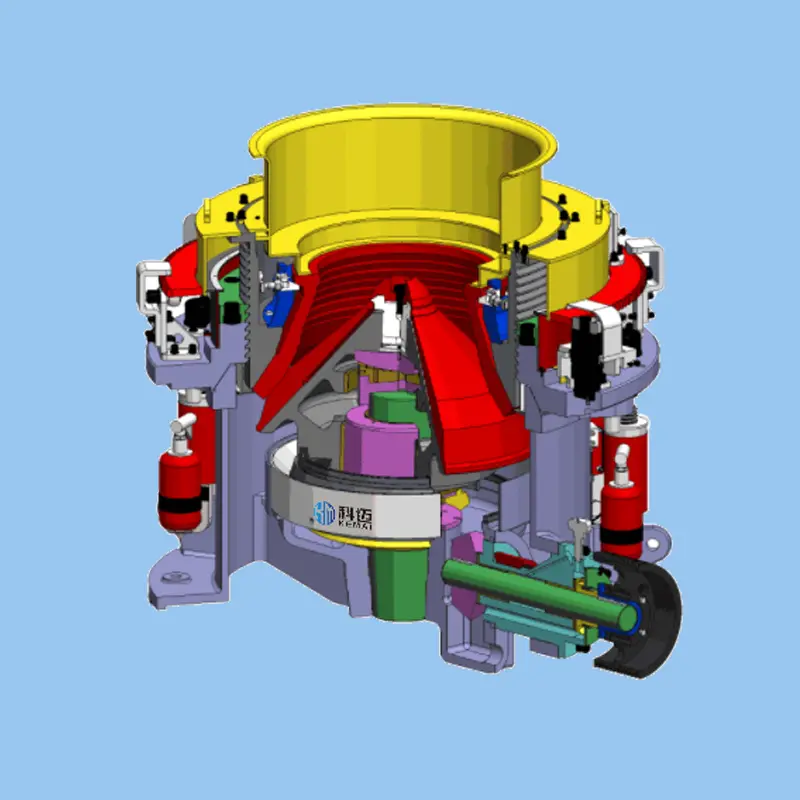

HPS series multi-cylinder hydraulic cone crusher is mainly composed of fixed cone part, moving cone part, eccentric sleeve part, transmission part, frame part, adjusting ring part, feed bin part, discharge port adjustment part, locking protection cylinder part, fan part, motor part, hydraulic station, lubrication station and special tools part.
Multi-cylinder hydraulic cone crusher is developed on the basis of the spring cone crusher, its basic structure is similar to the spring cone crusher. The difference between multi-cylinder hydraulic and spring cone crusher is that the original 10-16 sets of springs are replaced with 10-16 safety cylinders. It consists of a cylinder body, a piston, a support and a bolt. The cylinder is divided into two chambers A and B by a piston.
The working parts of the multi-cylinder cone crusher are composed of two truncated cones. It is in the active state. The over-iron protection device of the multi-cylinder hydraulic cone crusher is a plurality of hydraulic cylinders, and integrated with the locking protection device, which is installed in the upper and lower machine joints. The structure is more complex, the crushing effect of high hardness ore is good, and it is mostly used for the medium and fine crushing operation of ore and rock.
