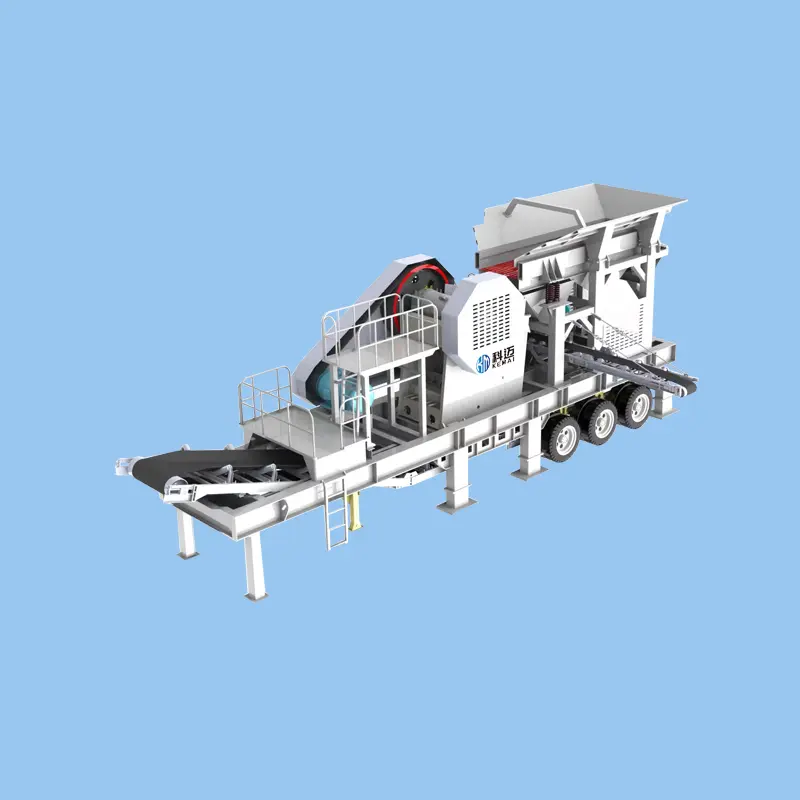

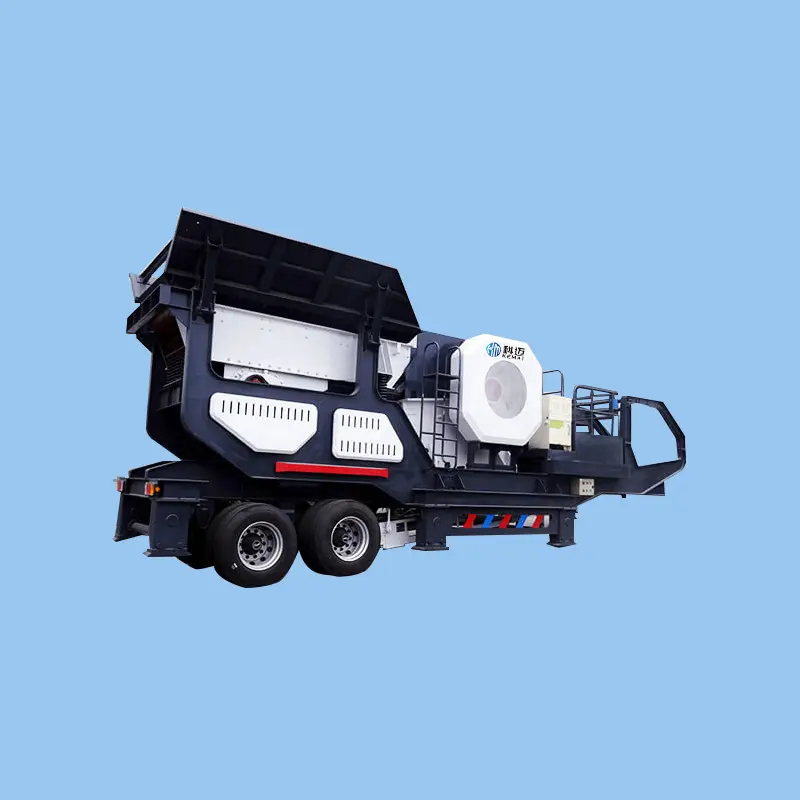

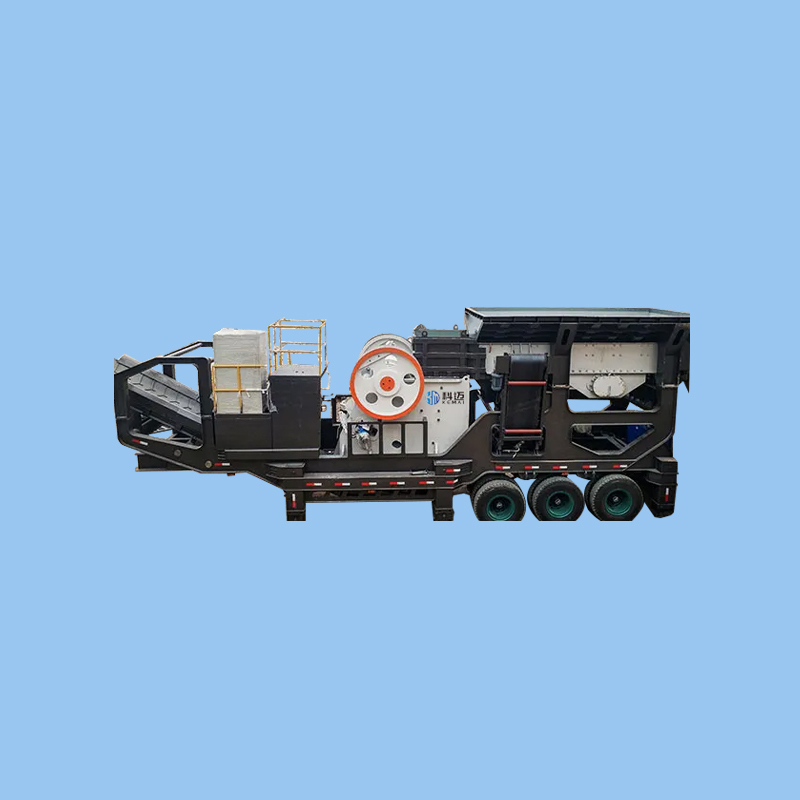

Powerful K Series Mobile Jaw Crusher
Working Principle
The material is uniformly transported to the crusher by the vibrating feeder. After the preliminary crushing of the crusher, the closed circuit system is formed by the circular vibrating screen to realize the circulating crushing of the material. The finished material is output by the conveyor for continuous crushing operation. The jaw mobile crusher can remove the circular vibrating screen according to the actual production needs, and realize the preliminary crushing of the material directly. It is convenient and flexible to use with other crushing equipment.
Characteristic and feature of K series mobile jaw crusher:
(1) The operation line of the mobile jaw crushing station is short, different crushing equipment is installed on the independent movable chassis, the wheelbase is short, the turning radius is small, and it can be flexibly driven in the ordinary highway and the working area.
(2) Reduce material transportation costs, materials can be processed on site, and materials do not have to be moved away from the site for reprocessing, greatly reducing the transportation cost of materials.
(3) The combination is flexible and adaptable. According to different crushing process requirements, it can be composed of "first crushing and screening", or it can be composed of "first screening and crushing" process, which can be combined into coarse crushing and fine crushing two-stage crushing and screening system according to actual needs, and can also be combined into coarse crushing, medium crushing and fine crushing three-stage crushing and screening system, which can also run independently and has great flexibility.
Technical parameters of K series mobile jaw crusher
Model | Vibrating feeder model | Jaw crusher model | Max feeding size(mm) | Capacity (t/h) | Dimension (mm) |
K3896-69 | ZSW380×96 | PE-600×900 | 500 | 60-130 | 11900×2680×4590 |
K3896-C96 | ZSW380×96 | C96 | 500 | 60-150 | 11800×2580×4560 |
K4211-75 | ZSW420×110 | PE-750×1060 | 630 | 90-320 | 12600×2780×4860 |
K4211-C110 | ZSW420×110 | C110 | 630 | 130-380 | 12500×2780×4860 |
