Quality Mining Screen Mesh for Efficient Operations

Mining Spare Parts

Quality Mining Screen Mesh for Efficient Operations

Mine screen mesh is a newly developed product in wire mesh industry. It is a metal mesh structure element used for screening and filtering. High screening rate, wear resistance, corrosion resistance, anti-slip, anti-vibration, strong elasticity, toughness, not together. The cross section of the mesh wire is trapezoid. The gap is narrow at the top and wide at the bottom. It is a screen made of stainless steel wire cold rolled, the support bar is welded by automatic mine screen production equipment, the screen joint is uniform, the welding quality is stable, the opening rate is high, the service life is long, has a high strength, steel and bearing capacity, can be made into a variety of shapes of steel screening filter device.

    Working Principle

    Characteristic and feature of mining screen mesh
    Wire material: 65Mn
    Wire diameter: 0.8mm-13mm
    Mesh hole: 2mm-100mm
    Features & Advantages
    1. Angle: 30 degrees, 45 degrees,60 degrees
    2. Crimped Wire Mesh Shape: v-shaped, u-shaped

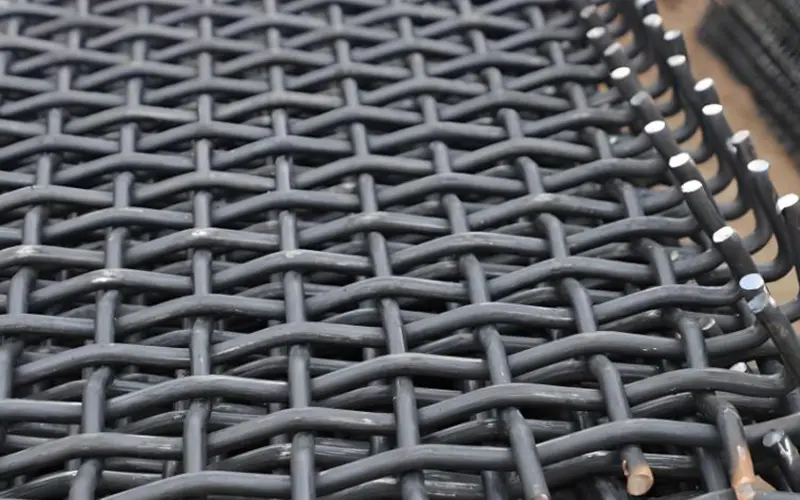

    3. Hook Type: C or U hook for 30°-180°
    4. Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
    5. Mesh Type: Square, rectangular slot, long slot.
    6. Surface Treatment: Anti rust oil painted.

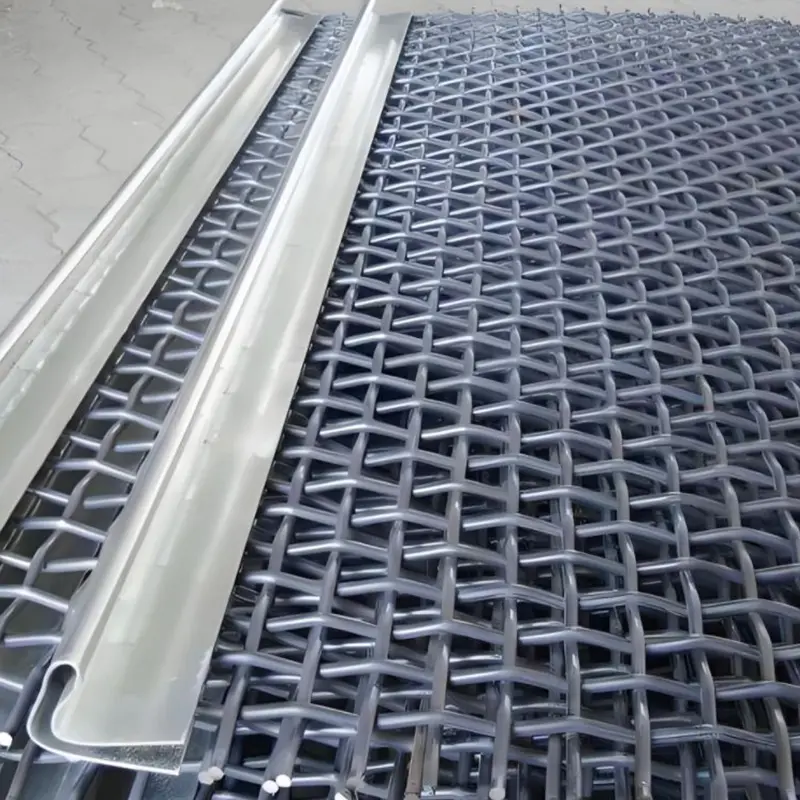

    7. Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
    The following is the normal material component, it also can be customized as your request.

    Some Of Our Product
