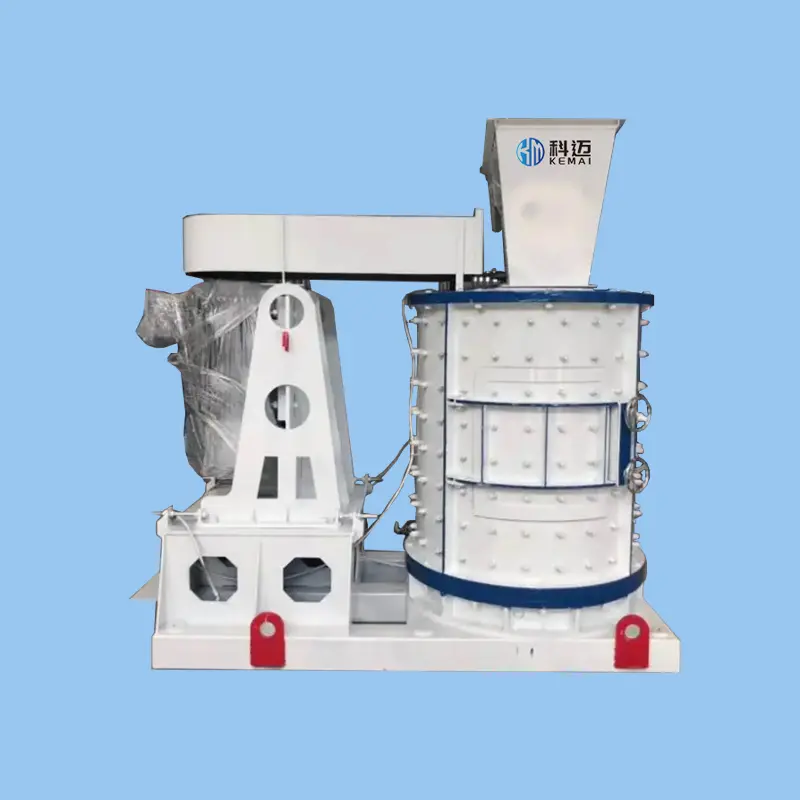

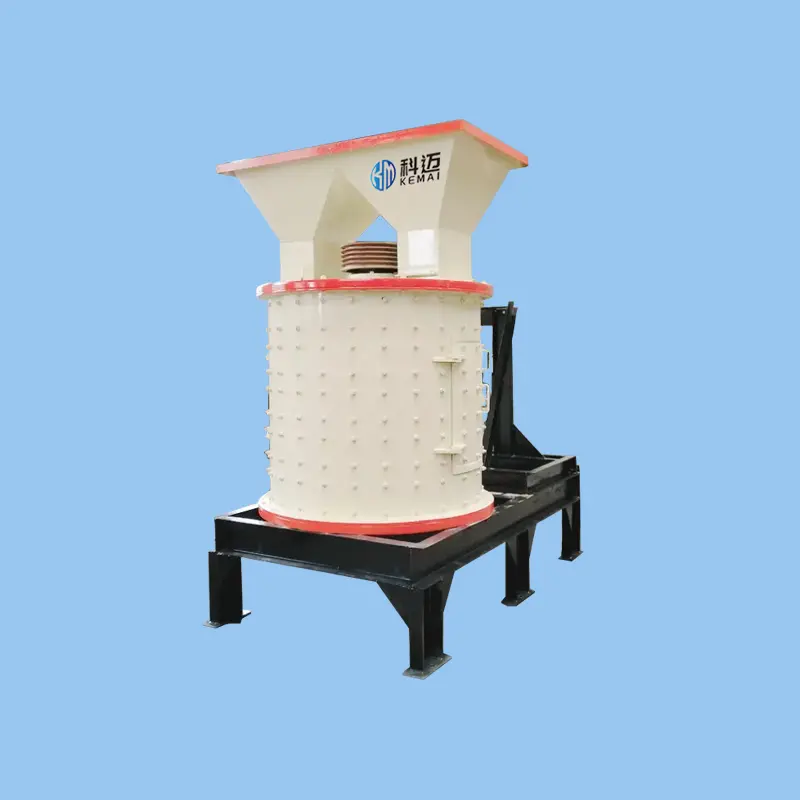

PL Series Vertical Shaft Crusher - Efficient Crushing Solution

The material falls vertically into the high-speed rotating impeller from the upper part of the machine, and under the action of high-speed centrifugal force, it produces high-speed impact and crushing with another part of the material that is distributed around the impeller in the form of an umbrella. After colliding with each other, the material will form eddy currents between the impeller and the casing, collide with each other and grind, and then discharge through the lower part to form a closed loop multiple times. The required particle size of the finished product is controlled by the screening equipment.

Characteristic and feature of PL series vertical shaft crusher

(1). The crushing ratio of the machine is large, and the maximum crushing ratio can reach the discharge particle size can be adjusted arbitrarily, which is not affected by the wear of the plate hammer and lining plate;

(2). No screen bar setting, crushing high moisture content, large mud content of the material is not easy to plug;

(3). The elastic adjusting mechanism can automatically discharge the unbreakable material, which will not cause damage to the equipment;

(4). Bearing horizontal layout, long life, can be broken high temperature materials (such as cement clinker);

(5). The rotor body has a unique structure, the rotor body almost does not wear when crushing materials;

(6). The rear cavity is provided with a screw or hydraulic opening mechanism, and the wearing parts can be easily replaced without the main equipment.
