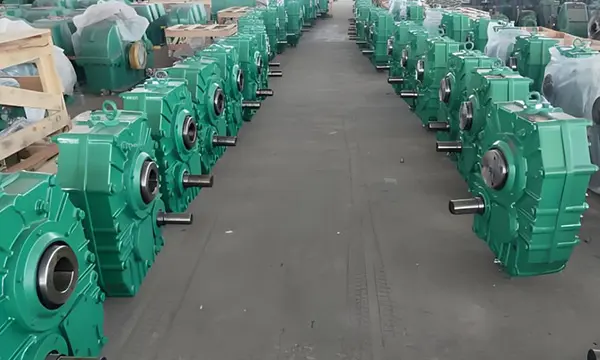

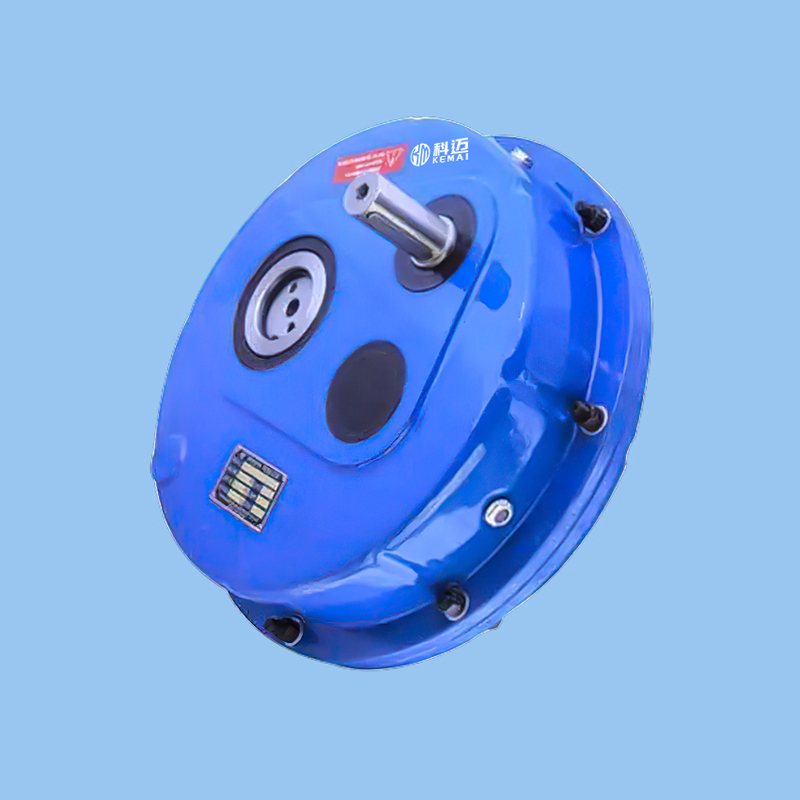

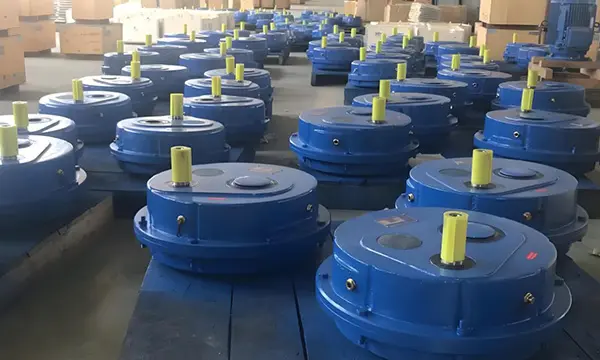

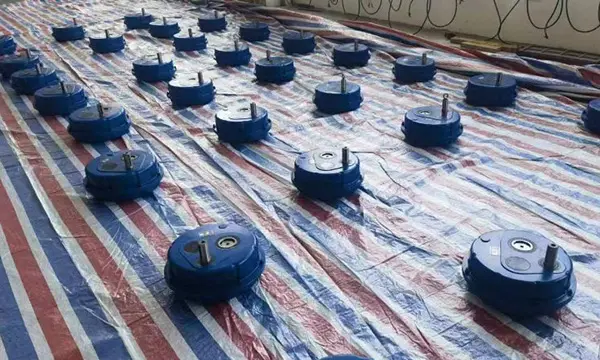

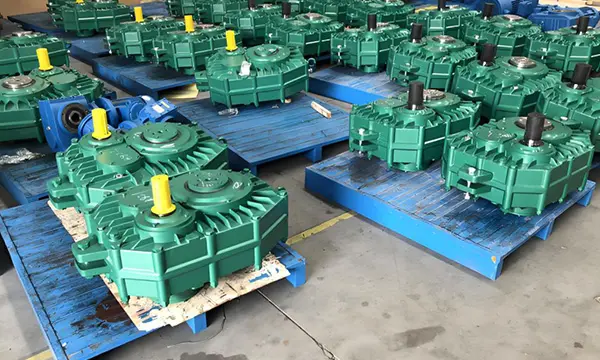

High Performance Shaft Mounted Gearbox for Sale

Shaft mounted gear box has long has long been established as a best seller for quarry and mine applications where absolute reliability and low maintenance are key factors. Another winning factor is the backstop option that prevents back driving in the case of inclined conveyors. This gearbox can be completed by selecting from a wide range of electric motors entirely

product details

Working Principle

Characteristic and feature of shaft mounted gearbox

1.Housing material:HT250 high-strength cast iron

2.Housing hardness: HBS190-240

3.Gear material:20CrMnTi alloy steel

4.Surface hardness of gears:HRC58°~62 °

5.Gear core hardness:HRC33~40

6.Input / Output shaft material:42CrMo alloy steel

7.Input / Output shaft hardness:HRC25~30

8.Machining precision of gears:accurate grinding, 6~5 Grade

9.Lubricating oil:GB L-CKC220-460, Shell Omala220-460

10.Efficiency:98%

Technical parameters of shaft mounted gearbox

Shaft Mounted Reducer	Output Shaft Bore[mm]	Ratio(i)	Rated torque
35	Φ35	5,10,15,20,25	420N.m
40	Φ40	5,10,12.5,15,20,25	900N.m
	Φ45
45	Φ45	5,10,12.5,15,20,25	1400N.m
	Φ50
	Φ55
50	Φ50	5,10,12.5,15,20,25	2300N.m
	Φ55
	Φ60
60	Φ60	5,10,12.5,15,20,25	3600N.m
	Φ70
70	Φ70	5,10,12.5,15,20,25,31	5100N.m
	Φ85
80	Φ80	5,10,12.5,15,20,25,31	7000N.m
	Φ100
